Description

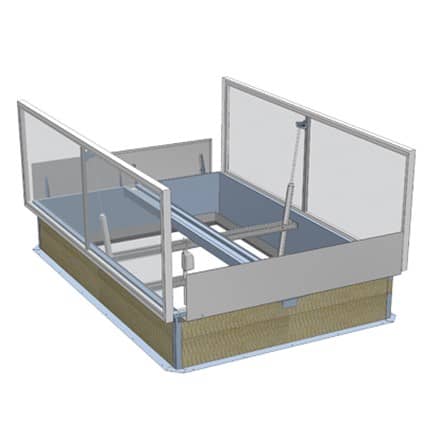

Smoke vents mcr Prolight are automatic smoke exhaust devices. The basic function of smoke vents mcr Prolight is to exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of buildings, in order to protect human lives and property.

Advantages
• SIZE RANGE UP TO 3X3 M – Manufacturing of custom-made sizes to meet the customer demands is our standard service with dimensions up to 300×300 cm
• NON-STANDARD SOLUTIONS – The preparation of non-standard variants of vents according to an architect’s vision is also possible on request.
• INCREASING ACTIVE AREA WITH ADDITIONAL ELEMENTS – Adjusting active area of the smoke vent by optional fitting elements that enhance its parameters (wind deflectors, inlet deflectors)
• VARIETY OF GLAZINGS – Many types of glazing available e.g.: PCA, PC dome, PMMA dome, sandwich panel etc.
• MULTIFUNCTIONALITY – Smoke vent may provide several functions at the same time, e.g.: smoke and heat exhaust, daily ventilation, supply of daylight and roof access

Technical data

CE PARAMETERS ACC. TO EN 1201-2:
• Re1000, 300 or 100– operational reliability during 1000/300/100 cycles of opening and shutting to smoke venting position, and 10 000 cycles to ventilation position (double function vent),
• WL1500 or WL750 – operational certainty of vent under wind stress equivalent to 1500 Pa or 750 Pa (depending on type, size and accessories),
• T(-25) or T(00) – resistance of vent to low temperature of -25°C or 0°C,
• B300 – resistance of vent to high temperature of 300°C,
• SL 250÷950– operational certainty of vent under snow load N/m2

DIMENSIONAL RANGE OF SMOKE VENTS:
• 120×250 cm ÷ 300×300 cm

Assigments
Production halls and warehouses
Public buildings
Residential buildings
Logistics centers
Commercial buildings

Realizations

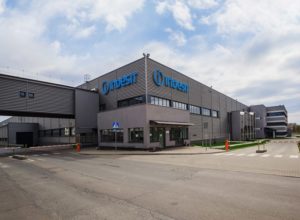

Indesit – fabryka główna Łódż
Opis dla realizacji Indesit. Opis dla realizacji Indesit. Opis dla realizacji Indesit. Opis dla realizacji Indesit. Opis dla realizacji Indesit. Opis dla realizacji Indesit.
